What is Magnet Wire？

Magnet wire, is the unsung hero of our wired world. It is a thin insulation-coated specialty electrical conductor that enables dense, efficient windings that power everything from small smartphone motors to massive industrial generators, powering modern technology’s necessary electromagnetic energy conversions.

1. The Anatomy of Magnet Wire: Two Essential Components

Magnet wire can appear simple, but its careful design serves crucial functions in electromagnetic applications. Let’s examine its two most significant elements:

1.1 The Conductor Core: More Than Just Metal

The backbone of all magnet wire is its conductive material. While typically copper or aluminum in build, the conductor itself can be made from a variety of metals:

• • Copper – The gold standard for conductivity and durability

• • Aluminum – Approximately 46% lighter than copper with about 61% of its conductivity

• • Copper Clad Aluminum (CCA) – A hybrid offering balanced properties

• • Specialty Conductors – Including various alloys, silver-plated copper, and precious metals for specialized applications

The ideal conductor is one that maximizes electrical efficiency, heat characteristics, weight, and cost-effectiveness. Copper dominates the market due to its unmatched conductivity combined with excellent thermal management and mechanical strength.

In choosing conductor material, engineers need to think not only in terms of initial expense but also of long-term performance. Aluminum, for example, provides high weight savings, but its larger needed cross-section partially cancels out space savings, and its oxidation on the surface demands special termination methods.

1.2 The Insulation Layer: Thin Yet Mighty

What distinguishes magnet wire is that it has extremely thin insulation that prevents short circuits but maximizes the use of space.

Enamel Coating Types:

1. 1. Polyurethane (Class 130°C) – Offers excellent solderability and moderate heat resistance. The Class 130°C designation indicates the maximum temperature rating according to IEC standards, beyond which the insulation may degrade.

1. 1. Polyester (Class 155°C) – Provides superior chemical resistance and is best suited for use where exposure to a variety of chemicals is a concern. Class 155°C rating represents the maximum temperature at which the insulation can successfully function without compromising its integrity.

1. 1. Polyesterimide (Class 180°C) – Marked by better thermal performance, hence it is appropriate to be used in applications with greater operating temperatures. Class 180°C is a sign of its capability to perform at greater thermal levels.

1. 1. Polyamideimide (Class 200°C) – Marked by greater mechanical toughness, this coating is best for harsh environments where greater toughness of insulation is required. Class 200°C rating is the greatest safe operating temperature as per IEC standards.

1. 1. Polyimide (Class 220°C) – It has the highest organic temperature rating of insulation and is suitable for extreme temperature uses. It receives a Class 220°C designation and will operate at maximum even under extreme thermal stress.

Alternative Insulations:

• • Wrapped Insulations – Using materials like paper, glass fiber, synthetic fibers or insulating films

• • Inorganic Insulations – Including ceramic, glass films or oxide films for extreme environments

1.3 The Working Principle: Faraday’s Legacy

Magnet wire operates based on Faraday’s law of electromagnetic induction. When current flows through the wire, it generates a magnetic field. Conversely, when the wire moves through a magnetic field, it generates electrical current. This fundamental principle enables:

• • Motors: Converting electrical energy to mechanical motion

• • Generators: Converting mechanical motion to electricity

• • Transformers: Transferring electrical energy between circuits

• • Inductors: Storing energy in a magnetic field

This dual electromagnetic conversion capability makes magnet wire the foundation of virtually all electromechanical systems in existence.

2. The Diverse World of Magnet Wire: Types and Applications

Magnet wire comes in numerous variations to suit different applications. Here’s how they’re categorized:

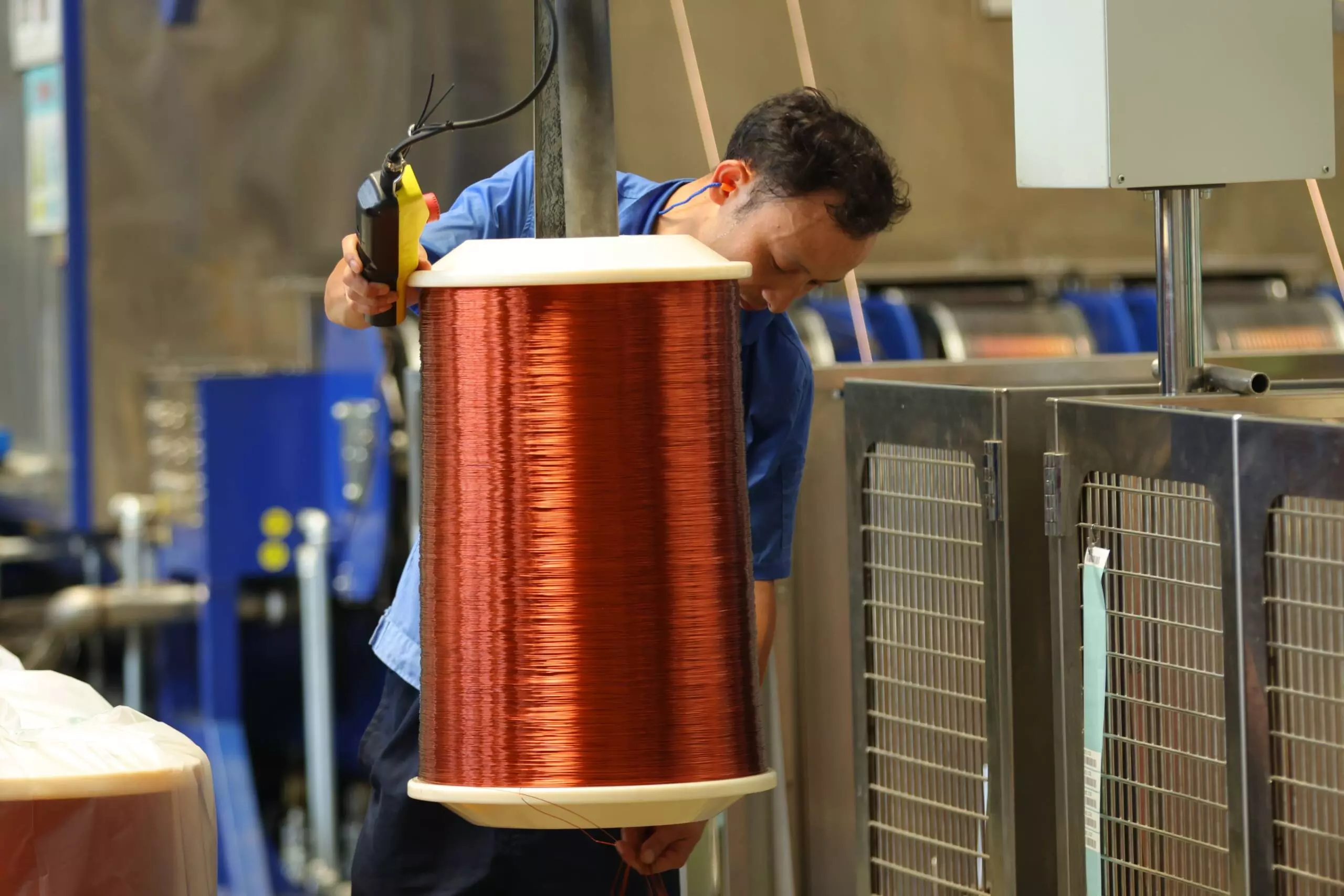

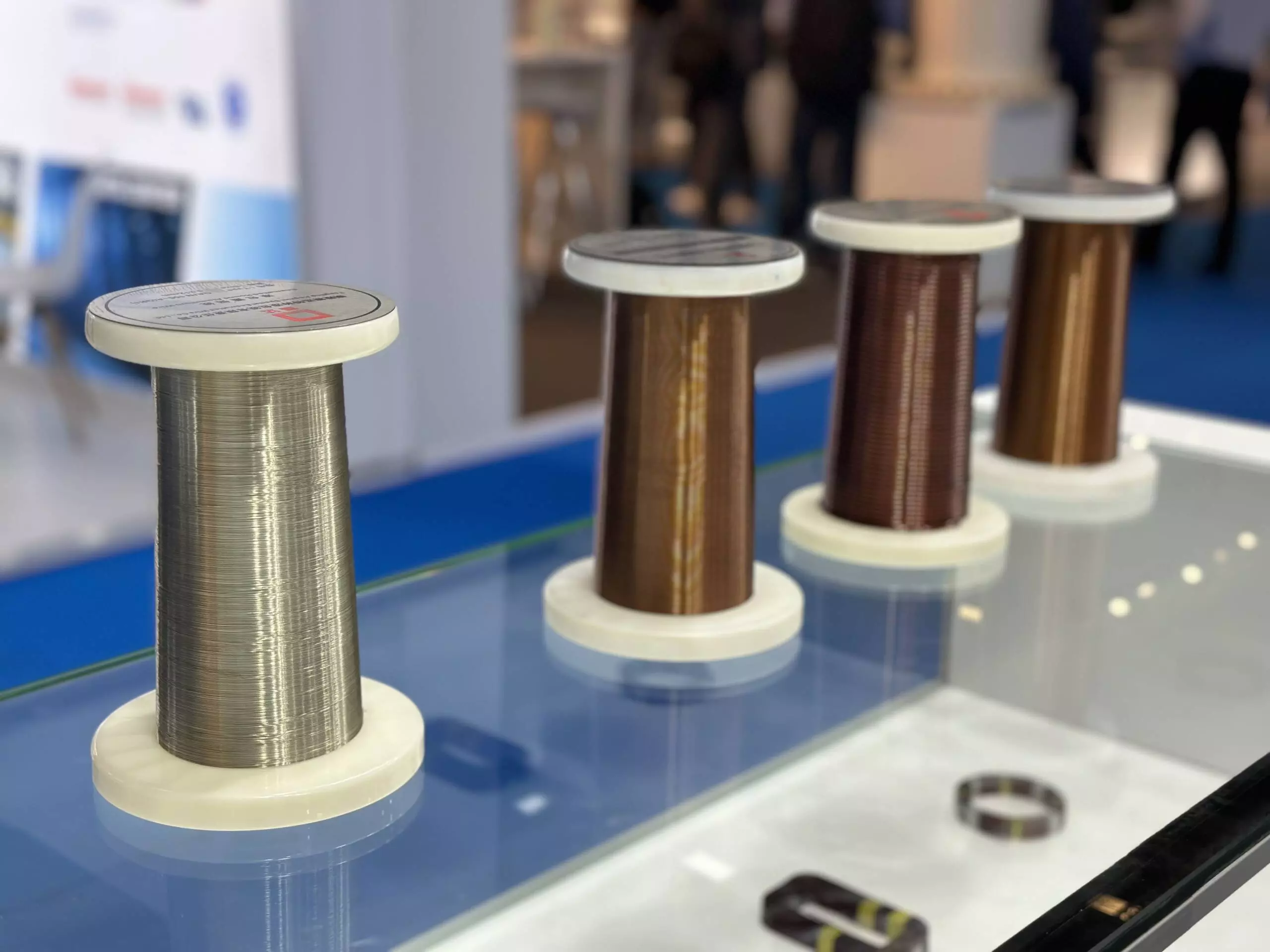

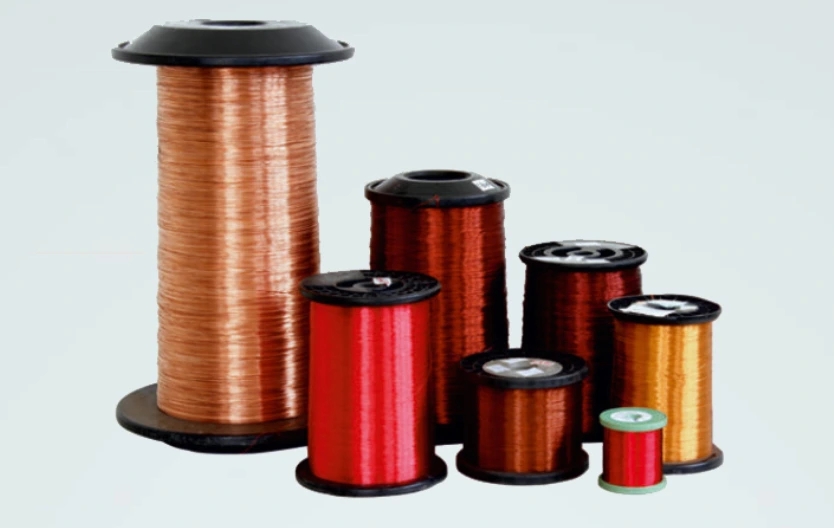

2.1 By Conductor Material: Selecting the Right Metal

Copper Magnet Wire:

• • Highest conductivity option (57 MS/m)

• • Superior thermal management (401 W/m·K thermal conductivity)

• • Excellent ductility and tensile strength (220-370 MPa)

• • Industry standard for most applications

• • Available in various purities (ETP, OFHC, etc.)

Aluminum Magnet Wire:

• • Lighter than copper: Density of 2.7 g/cm³ vs. 8.96 g/cm³.

• • More economical option: Typically less costly than copper.

• • Requires 1.6× the cross-sectional area for equivalent performance to ensure similar resistance levels as copper to match electrical efficiency.

• • Ideal for weight-sensitive applications; Suitable for areas like aerospace and automotive industries where reducing weight is vital.

• • Higher resistance leads to increased power losses, affecting efficiency in certain uses.

Copper Clad Aluminum:

• • Offers weight reduction vs. pure copper

• • Better conductivity than pure aluminum

• • More cost-effective than solid copper

• • Increasingly popular in cost-sensitive markets

• • Typical cladding ratio: 10-15% copper by cross-section

Specialty Conductors:

• • Silver-Plated Copper – For high-frequency applications (skin effect optimization)

• • Copper-Silver Alloys – For exceptional high-temperature stability

• • Nickel Alloys – For specialized magnetic properties

• • Aluminum Alloys – For improved strength with minimal conductivity sacrifice

The specific conductor selection involves complex trade-offs between electrical performance, thermal characteristics, mechanical requirements, and economic constraints.

2.2 By Insulation Classification: Beyond Basic Enamel

Magnet wire insulation can be further categorized by its specific formulation and purpose:

General Purpose Insulations:

• • Standard varnishes for common applications

• • Balanced mechanical and electrical properties

• • Cost-effective for high-volume production

Solderable Insulations:

• • Designed to break down cleanly at soldering temperatures

• • Eliminates mechanical stripping requirements

• • Popular in electronics manufacturing

Self-Bonding Insulations:

• • Contains adhesive compounds that activate during curing

• • Creates self-supporting coils without additional adhesives

• • Improves vibration resistance in finished windings

Corona-Resistant Insulations:

• • Enhanced resistance to partial discharge

• • Essential for high-voltage applications

• • Incorporates inorganic particles for improved dielectric properties

Chemical-Resistant Insulations:

• • Specifically formulated to withstand harsh environments

• • Oil-resistant variants for transformer and automotive applications

• • Refrigerant-resistant types for compressor motors

Each insulation type represents a specialized solution for specific application requirements, demonstrating the highly engineered nature of modern magnet wire.

2.3 Common Applications: Powering Our World

Magnet wire serves as the foundation for countless electromagnetic devices:

Application	Wire Type Typically Used	Key Requirements

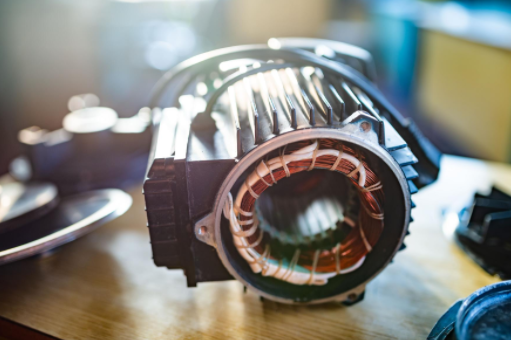

Motors	Copper, round or flat	Temperature resistance, mechanical strength
Transformers	Copper or aluminum, often flat	Insulation integrity, thermal management
Inductors	Fine gauge copper	Consistency, precise winding properties
Generators	Copper, often flat	Maximum conductivity, thermal stability
Relays/Solenoids	Copper, round	Quick response, durability
Audio Equipment	Copper, fine gauge	High purity, consistent properties
Medical Devices	High-purity copper	Reliability, biocompatibility

Each application demands certain wire characteristics, from the heavy windings in motors for industry to the very fine precision windings employed in electronic devices. Technological advancement in each sector has been facilitated by the invention of magnet wire.

3. Round vs. Flat Wire: Shape Matters

The cross-sectional shape of magnet wire defines its performance characteristics:

3.1 Round Wire: The Versatile Standard

Round magnet wire is round in cross-section and offers:

● Simplified production and handling

● Universality in universal applications

● Natural spacing between windings

● Lower cost production

● Less complicated winding equipment requirements

● More forgiving in automated winding systems

Round wire remains the default for most applications due to its ease of production and widespread availability in standard gauges. The industry-standard American Wire Gauge (AWG) system provides precise diameter specifications from the thickest (AWG 0000) to the finest (AWG 56+), with each three-gauge increase representing approximately half the cross-sectional area.

3.2 Flat Wire: Space-Efficient Performance

Flat (rectangular) magnet wire provides:

• • higher fill factor in windings

• • Improved heat dissipation

• • Enhanced current handling capacity

• • Better mechanical stability

• • Reduced AC losses in certain applications

• • More consistent winding tension

The technical advantages of flat wire also become most critical in high-performance applications where the most efficient operation and power density need to be optimized. These advantages, however, are linked with greater manufacturing complexity and greater material cost.

3.3 Application Differences: When to Use Each

Round Wire Best For:

• • General purpose motors

• • Small transformers

• • Relays and solenoids

• • Cost-sensitive applications

• • Automated high-speed winding

• • Applications with complex winding geometries

Flat Wire Excels In:

• • High-performance traction motors

• • Large power transformers

• • Wind turbine generators

• • Applications where space is critical

• • High-current designs

• • Electric vehicle propulsion systems

The round and flat wire performance difference is fully utilized in high-frequency use where the skin effect will cause current to travel towards the conductor surface. Flat wire’s increased surface-to-volume ratio is thus in its interest in such instances and offers lower AC resistance and reduced loss.

4. Choosing the Right Magnet Wire: Key Selection Factors

Choosing the right magnet wire entails considering several important factors:

4.1 Temperature Rating: Heat Management

Temperature classes define operational limits:

• • Class 105°C (A) – Basic applications

• • Class 130°C (B) – Standard industrial applications

• • Class 155°C (F) – Enhanced thermal performance

• • Class 180°C (H) – High-temperature applications

• • Class 200°C (N) – Very high-temperature applications

• • Class 220°C (R) – Extreme temperature applications

The temperature rating must account for both ambient conditions and internal heat generation. Engineers typically apply a safety margin, selecting wire rated at least 20°C above the maximum expected operating temperature. Remember that insulation life decreases exponentially as temperature increases beyond rated values – a 10°C increase typically halves insulation life expectancy.

4.2 Size Matters: AWG and Dimensions

Wire gauge (typically specified in AWG) determines current capacity:

• • Fine Gauge (38-44 AWG) – Electronics, sensors, precision instruments

• • Medium Gauge (20-36 AWG) – Small motors, relays, transformers

• • Heavy Gauge (8-18 AWG) – Large motors, industrial equipment, power distribution

For precision applications, engineers must also account for the build factor – the dimensional increase from bare conductor to finished wire due to insulation thickness.

4.3 Other Critical Specifications

Some other considerations include:

• • Voltage rating – Should be higher than application requirements with safety factor

• • Chemical resistance – For harsh environment applications

• • Thermal cycling stability – For applications with frequent on/off cycles

• • Abrasion resistance – For challenging winding processes

• • Flexibility – Particularly for automated manufacturing

• • Solderability – For connections requiring soldered terminations

• • Corona resistance – For high-voltage applications

• • Thermal conductivity – For heat-limited designs

• • Cost constraints – Material selection within project budget

Proper selection involves balancing these sometimes competing requirements. Engineers often work directly with magnet wire manufacturers to identify the optimal specification for challenging applications.

Magnet Wire: A Cornerstone of Modern Electrical Engineering

Magnet wire is a fundamental element of electrical engineering, critical to the electromagnetic energy conversions that power modern life. Understanding its properties, selection of type, and application in design is key to achieving optimal performance in traditional and emerging applications. As technology continues to construct our future, magnet wire will remain firm in its foundational position in the electrical systems that power our world. Its combination of simplicity and elegance emphasizes its ongoing relevance in facilitating innovation and efficiency in many industries.
