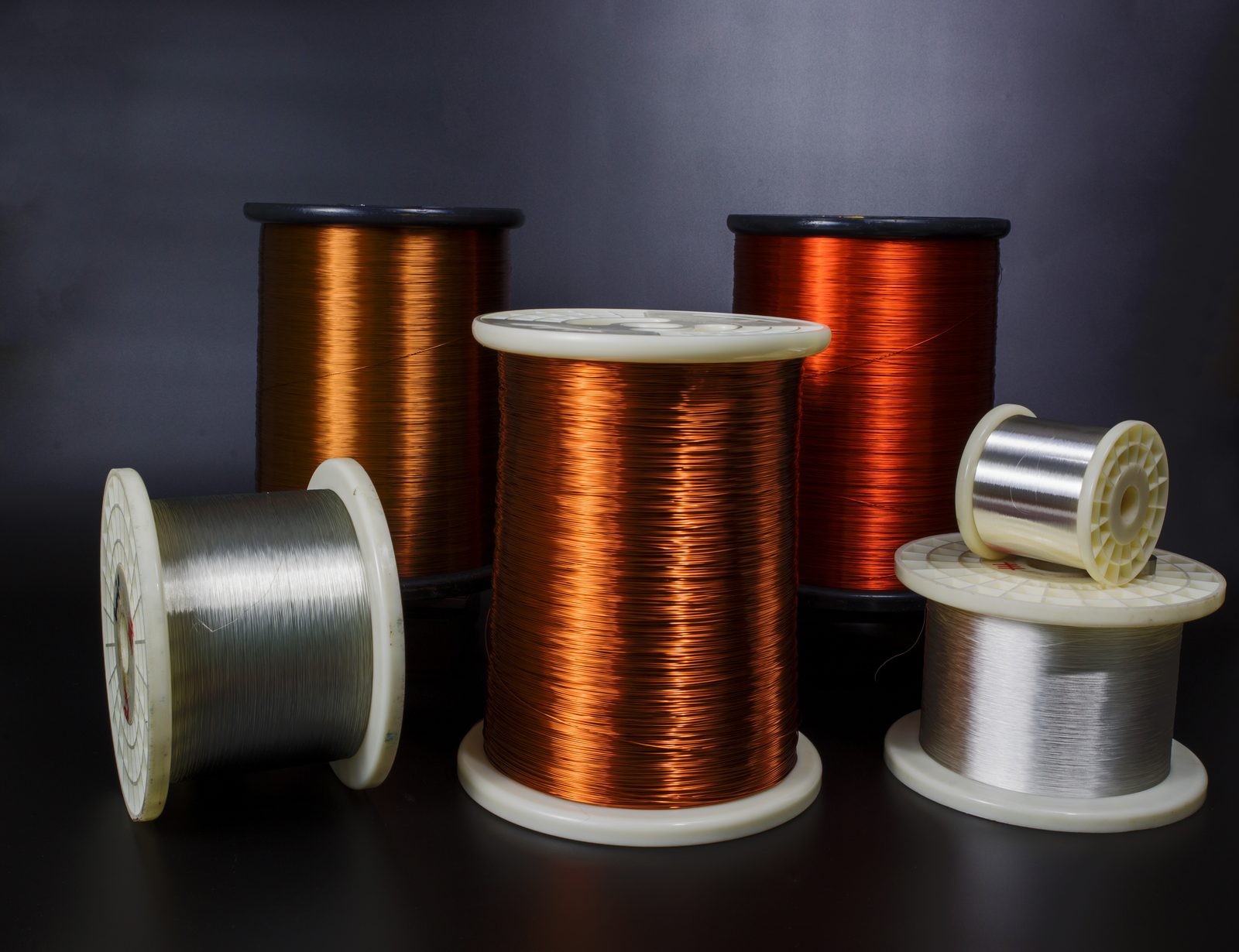

200-Class Enameled Copper Wire
One of the most widely used high-temperature products in the Jingda range — a dual-coat film system engineered to raise thermal, abrasion and refrigerant performance together while keeping production cost under control.
- Thermal class
- 200
- Standards
- MW 35-C · MW 73-C
IEC 60317-13 - Diameter
- 0.100 – 4.500 mm
- Insulation
- Dual-coat PE/PEI + PAI
What Is 200-Class Enameled Copper Wire?
200-class enameled copper wire is a dual-coat winding wire rated for a thermal class of 200 °C. It pairs a high-purity copper conductor with a polyester or polyester-imide basecoat and a polyamide-imide topcoat, giving heat, abrasion and refrigerant resistance for motor and compressor windings.
Why two coats
The basecoat carries the thermal and chemical load. The polyamide-imide topcoat takes the abrasion and winding stress, and adds lubricity. Splitting the two jobs is what lets the film hold up in high-speed winding and in sealed refrigerant systems where a single-coat film would be marginal — and it keeps cost lower than building the whole film from the more expensive resin.
What you get
- Excellent refrigerant resistance for hermetic compressor systems
- Stable heat resistance through continuous thermal cycling
- Tough, uniform film with high scrape resistance — fewer wire breaks at high winding speeds
- Lubricated surface tuned for high-speed automatic winders
- Every production lot tested in CNAS-accredited laboratories for batch-to-batch consistency
Jingda Enameled Copper Wire Range
Select on the continuous operating temperature of your winding first, then on the insulation system and whether the termination process needs direct soldering through the enamel.
| Product | Thermal class | Insulation | IEC | NEMA | JIS | Direct soldering |
|---|---|---|---|---|---|---|
| 240-Class Enameled Copper Wire | 240 | Polyimide | IEC 60317-46 | MW 16-C | PIW | No |
| 220-Class Enameled Copper Wire | 220 | Polyamide-imide | IEC 60317-57 | MW 37-C | AIW | No |
| Viewing200-Class Enameled Copper Wire | 200 | Polyester-imide + Polyamide-imide | IEC 60317-13 | MW 35-C · MW 73-C | EI/AIW | No |
| 180-Class Enameled Copper Wire | 180 | Polyester-imide | IEC 60317-8 | MW 30-C | EIW | No |
| 155-Class Enameled Copper Wire | 155 | Polyester | IEC 60317-3 | MW 5-C | PEW | No |
| 180-Class Solderable Enameled Copper Wire | 180 | Polyurethane | IEC 60317-51 | MW 82-C | UEW | Yes |
| 155-Class Solderable Enameled Copper Wire | 155 | Polyurethane | IEC 60317-20 | MW 79-C | UEW | Yes |
Aluminum conductors are available across comparable classes — see enameled aluminum wire and copper-clad aluminum wire. For flat and other profiles, see shaped magnet wire.
200-Class Enameled Copper Wire Specifications
| Parameter | Value |
|---|---|
| Standards | NEMA MW 35-C · MW 73-C · IEC 60317-13 |
| Jingda type designations | JDMW35C · JDMW73C (NEMA) | Q(ZY/XY)-*/200 (IEC) | EI/AIW (JIS) |
| Diameter range | 0.100 – 4.500 mm |
| Conductor | High-purity copper, ≥ 99.95% Cu |
| Insulation build | Grade 1 (Single) · Grade 2 (Heavy) · Grade 3 (Triple) |
| Surface | Lubricated; lubricant specification available on request or to customer specification |
| Solderability | Not designed for direct soldering through the enamel |
| Certifications & compliance | UL Recognized · RoHS and REACH reports available above |
Spec Finder — check your size in seconds
Select a nominal conductor diameter and build. Data for reference only — contact Jingda engineers to confirm exact values for your specification.
Finished enameled wire, Jingda conversion method (copper × 1.035). Reference only.
Key dimensional data — reference table
| Nominal Ø (mm) | Max overall Ø (mm) | Min breakdown voltage (V) | Resistance at 20 °C (Ω/m) |
|---|---|---|---|
| 0.315 | 0.367 | 4100 | 0.2121 – 0.2270 |
| 0.500 | 0.566 | 4600 | 0.08462 – 0.08959 |
| 1.000 | 1.094 | 5000 | 0.02116 – 0.02240 |
| 2.000 | 2.112 | 5000 | 0.00529 – 0.00560 |
Performance and Applications
Jingda’s 200-class enameled copper wire delivers stable heat resistance at thermal class 200, refrigerant resistance for hermetic systems, and high mechanical strength of the insulation film for reliable winding and insertion.
Typical Applications
Quality and Compliance
Every production lot is tested in Jingda’s CNAS-accredited laboratories against the applicable product specification and agreed requirements. The 200-class range is UL Recognized under File E174580 and manufactured under an ISO 9001 quality system.
Product Datasheet
Complete dimensional, electrical and thermal tables for every published size and build.
View DatasheetQuality Certificates
Substance Compliance
Tongling Jingda Special Magnet Wire Co., Ltd.
We are one of the world’s leading magnet wire manufacturers, based in Tongling City — one of China’s principal copper production bases. Listed on the Shanghai Stock Exchange since 2002 (600577), the group runs a national-level enterprise technology centre, a national-level postdoctoral research station and the Jingda Magnet Wire Research Institute.
Jingda magnet wire is wound into products across new-energy vehicles, photovoltaics, robotics, aerospace, home appliances, specialty motors, 5G communications and electronics.
Ordering, Packaging and Delivery
| Commercial term | Detail |
|---|---|
| Minimum order quantity | 600 kg per type and conductor diameter. Sample and pilot-order quantities are agreed case by case. |
| Lead time | Stock available: dispatch from the next working day. Scheduled production: normally within 30 days, confirmed per order. |
| Incoterms | FOB by default; other Incoterms on request. |
| Quotation response | Within 1 business day. |
Spool types and pallet configuration — copper wire
Single spools for samples or small orders are packed individually in a wooden case or paper drum. Volume shipments use fumigation-free wooden pallets, with cartons or fibreboard collars protecting the spools and stretch film securing the load.
| Spool type | Average wire weight (kg) | Pallet size (mm) | Spools per pallet | Max layers |
|---|---|---|---|---|
| PT-25 | 25 | 1030 × 1030 | 16 | 2 |
| PT-45 | 40 | 1100 × 1100 | 16 | 1 |
| PT-60 | 50 | 1030 × 1030 | 9 | 1 |
| PT-90 | 80 | 1100 × 1100 | 9 | 1 |
Average wire weights are nominal. Exact spool weight and pallet build are confirmed per order.
Frequently Asked Questions
How do I choose between 200-class and 220-class copper wire?
What is the difference between Grade 1, Grade 2 and Grade 3?
Is this wire suitable for hermetic refrigerant compressors?
Is this enameled copper wire directly solderable?
Can Jingda supply non-standard diameters or insulation builds?
Can we become a Jingda distributor or agent?
How does Jingda support customers after the order?
Request a Quote or Sample
Tell us your specification — a Jingda sales engineer will respond within 1 business day with a quotation or technical feedback.
