Comparing Different Types of Magnet Wire: A Detailed Analysis

In-Depth Comparison of Various Types of Magnet Wire

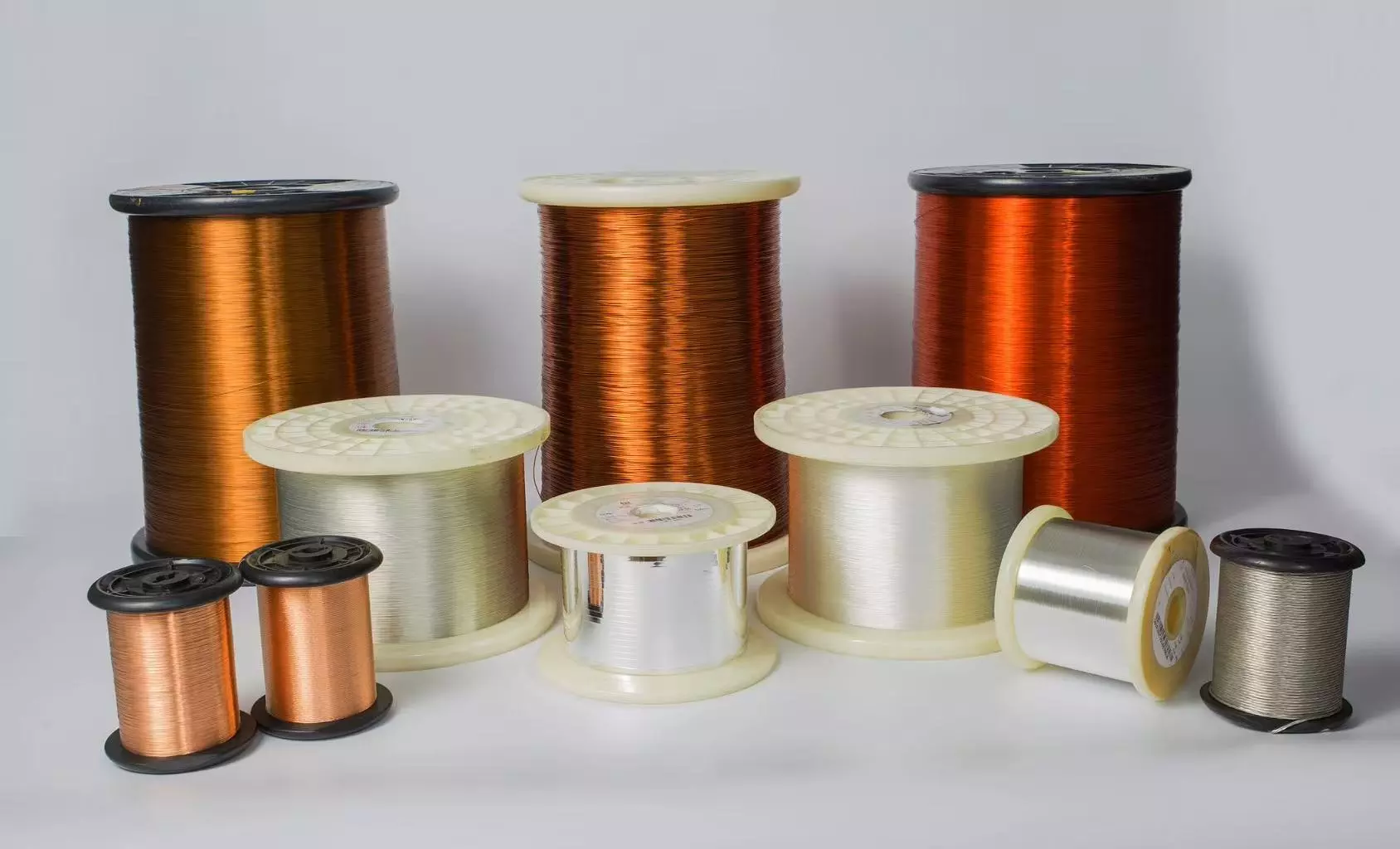

With various types of magnet wire available, understanding the differences is crucial for making informed decisions. This article provides a detailed analysis of the most common types of magnet wire used in electrical applications.

1. Enameled Copper Wire:
   • Description: The most widely used magnet wire, featuring a thin enamel coating for insulation.
   • Advantages: High conductivity and excellent thermal properties make it suitable for a wide range of applications.
2. Enameled Aluminum Wire:
   • Description: A lighter alternative to copper wire, coated with enamel insulation.
   • Advantages: Cost-effective and suitable for applications where weight is a concern, though it has lower conductivity than copper.
3. Polyimide Magnet Wire:
   • Description: Designed for high-temperature applications, with polyimide insulation.
   • Advantages: Offers superior thermal stability and is ideal for aerospace and automotive applications.
4. Polyester Magnet Wire:
   • Description: Features a polyester insulation coating.
   • Advantages: Good dielectric properties and flexibility make it suitable for general-purpose applications.

Performance Comparison of Magnet Wire Types

• Conductivity: Copper vs aluminum – Copper wire outperforms aluminum in terms of electrical conductivity.
• Weight: Aluminum wire is significantly lighter, making it advantageous in portable applications.
• Temperature Resistance: Polyimide wire excels in high-temperature environments, while standard enamel coatings may not perform as well.

FAQ on Comparing Magnet Wire Types

Q1: What are the main advantages of using copper magnet wire?

A: Copper magnet wire offers superior conductivity and thermal performance, making it ideal for high-efficiency applications.

Q2: When should I choose aluminum magnet wire over copper?

A: Aluminum magnet wire is a good choice when weight and cost are primary concerns, especially in lightweight applications.

Q3: How does polyimide insulation enhance magnet wire performance?

A: Polyimide insulation provides excellent thermal stability, making it suitable for high-temperature applications.

Q4: Are there specific applications where polyester magnet wire is preferred?

A: Polyester magnet wire is commonly used in general-purpose applications where flexibility and good dielectric properties are required.

Summary of Magnet Wire Comparisons for Informed Choices

Choosing the right type of magnet wire depends on specific application requirements. By understanding the differences among various types, engineers can select the most suitable wire for their projects.
